ITT Goulds Pumps is among the most widely recognized and respected brands in the global pump industry, serving customers in the oil and gas, mining, power generation, chemical, pulp and paper, and general industrial markets. As the only manufacturer to make digital monitoring standard on every process pump, ITT Goulds Pumps continues to lead the industry in both mechanical pump design and the adoption of smart technologies.
ITT PRO Services provides replacement parts, repair and upgrade services, reliability and maintenance programs, and asset management assistance to customers with the goals of extending equipment life, reducing Total Cost of Ownership (TCO), and increasing plant output. PRO Services includes, PumpSmart variable speed drive systems, and i-ALERT2 equipment health sensors.
About ITT Goulds Pumps
ITT Goulds Pumps is a global leader in centrifugal pump technology, providing high-performance, durable, and efficient solutions across various industries, including:
- Oil & Gas: Refining, exploration, pipeline transfer, and high-pressure fluid transport.
- Mining & Power Generation: Slurry handling, cooling, and heavy-duty industrial processes.
- Chemical & Petrochemical: Corrosive, abrasive, and hazardous fluid transfer.
- Pulp & Paper: Paper stock processing, black liquor pumping, and chemical recovery.
- General Industries: Industrial wastewater, metal finishing, and food processing.
Key Features Across All Models:
- i-ALERT®2: Advanced condition monitoring for predictive maintenance.
- Robust Construction: Available in cast iron, stainless steel, duplex, and specialty alloys.
- Smart Pump Technology: Variable speed drives & self-priming capabilities for efficiency.
Designed for heavy-duty industrial fluid handling, process industries, and high-efficiency performance.
GOULDS 3180/3185 | 3175 | 3181 / 3186 – PAPER STOCK & PROCESS PUMPS
- High flow rates up to 9,000 m³/h for pulp & paper, black liquor, and wastewater. abrasive slurries, fibrous materials, and corrosive fluids.
- Available with open, enclosed, or Shearpeller™ impellers for various applications.
- Dynamic seal option eliminates mechanical seal issues.
- Standard i-ALERT®2 condition monitoring for predictive maintenance.
- Material Options: AI/CD4MCuN, 316SS, Hast-C, Super Duplex, Duplex Stainless Steel, Alloy 20.
Performance:
- Capacities: 3180: 9,000 m³/h | 3185: 6,000 m³/h | 3175: 6,360 m³/h | 3181 / 3186: 3,000 m³/h
- Head: Up to 125 m | Pressure: Up to 16 bar / 20 bar / 25 bar
- Temperature Range: Up to 230°C
Heavy-duty solutions for sump drainage, tank unloading, and industrial process waste.

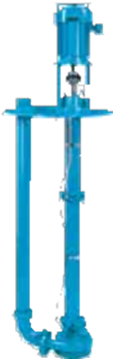

GOULDS 3171 / LF 3171 – VETERAN SUMP PUMP | Low Flow, High Head Vertical Sump Pump
- Rugged, heavy-duty construction for corrosive and non-corrosive liquids.
- Pit depths up to 6m, suitable for molten sulfur, chemical waste, and sump drainage.
Performance:
- Capacities: Up to 722 m³/h | 50 m³/h | LF 3171: 220 GPM
- Head: 95 m / 290 m | Pit Depths: Up to 6m | 20 ft.
- Temperature Range: Up to 232°C
Materials
- Cast Iron, Duplex SS, 316SS, Alloy 20, Hastelloy B and C
GOULDS NM3171 – FRP VERTICAL SUMP PUMP
- Constructed from fiberglass-reinforced vinyl ester for superior corrosion resistance.
- Best for: Acidic & caustic chemicals, wastewater, and demineralized water.
Performance
- Capacities: Up to 284 m³/h
- Head: 92 m
- Temperature Range: Up to 93°C
Goulds CV 3171
Vertical Sump and Process
The CV 3171 is a recessed impeller, circular volute type sump pump. Ideal for large solids and shear sensitive fluids. Circular volute minimizes radial loads
making this the ideal pump for low flow process applications.
Performance
- Capacities to 295 m3/h | 1,300 GPM
- Heads to 126 m | 230 ft
- Temperatures to 232° C | 450° F
- Pit Depths to 6 m | 20 ft
Designed to meet ANSI B73.1 standards, ensuring reliability in chemical & industrial applications.

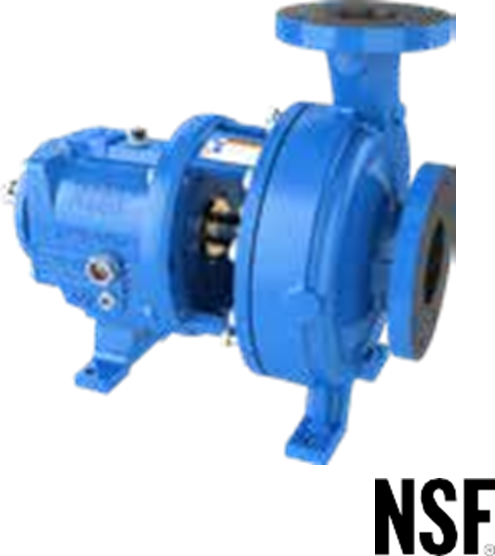

Goulds 3196 i-FRAME® – Standard ANSI Process Pump
- Over 1 million installations, making it the most trusted ANSI pump.
- Advanced i-FRAME® power ends for higher reliability and extended life.
Performance
- Capacities: Up to 1,364 m³/h
- Head: Up to 223 m | Pressure: 26 bar
- Temperature Range: Up to 371°C
Goulds LF 3196 i-FRAME®* Low Flow ANSI Process
Designed specifically to provide superior performance for low flow services. Features a concentric (circular volute) casing and open radial vane impeller to eliminate hydraulic and mechanical problems at low flows. Includes i-FRAME® power ends.
Performance
- Capacities to 50 m³/h | 220 GPM
- Heads to 282 m | 925 ft
- Temperatures to 371° C | 700° F
- Pressures to 31 bar | 450 PSIG
GOULDS HT 3196 – HIGH-TEMPERATURE ANSI PUMP
- Designed for thermal oils, die/mold heating, and reactor heating.
- Handles extreme temperatures up to 700°F
Performance
- Capacities: Up to 1,023 m³/h
- Head: Up to 282 m | Pressure: 31 bar
- Temperature Range: Up to 371°C
Goulds CV 3196 i-FRAME®* Non-Clog ANSI Process
Perfect solution for handling bulky, fibrous, or shear-sensitive liquids. The recessed impeller design provides non-clog pumping with minimum solids degradation. Capability to handle liquids containing 10 to 20 percent air/ gas. i-FRAME® power ends.
Performance
- Capacities to 610 m³/h | 2,700 GPM
- Heads to 134 m | 440 ft
- Temperatures to 260° C | 500° F
- Pressures to 20 bar | 285 PSIG
Goulds 3796*
Self-Priming ANSI Process
One-piece casing eliminates need for separate priming chamber, air separator, valves or by-pass line. Fully open impeller can be trimmed to meet specific hydraulic requirements. Includes i-FRAMETM power ends.
Performance
- Capacities to 284 m³/h | 1,250 GPM
- Heads to 131 m | 430 ft
- Temperatures to 260° C | 500° F
- Suction Lifts to 6 m | 20 ft
Materials
- Ductile Iron, 316SS, CD4MCu, Alloy 20, Hastelloy B and C, Titanium
Goulds 3996
In-Line ANSI Process
For corrosives, abrasives and high temperature. Fully open impeller, back pull-out design, heavy duty construction. Field alignment not required.
Performance
- Capacities to 318 m³/h | 1,400 GPM
- Heads to 213 m | 700 ft
- Temperatures to 260° C | 500° F
- Pressures to 26 bar | 375 PSIG
Sealless & ISO Process Pumps
Perfect for hazardous, high-purity, and aggressive chemical applications.
GOULDS 3298 – MAGNETIC DRIVE ANSI PUMP
- Sealless design eliminates mechanical seal failures.
- Designed for corrosive and toxic fluids in chemical processing.
Performance
- Capacities: Up to 270 m³/h
- Head: Up to 162 m | Pressure: 16 bar
- Temperature Range: Up to 121°C
Goulds SP 3298 Self-Priming Lined
When suction pressure is negative and air or gases must be evacuated to accomplish pump priming, the SP 3298 has a self-priming dual volute that primes on demand with only an initial charge of liquid in the casing. Priming is accomplished within the casing, eliminating the need for auxiliary priming systems.
Performance
- Capacities to 70 m³/h | 310 GPM
- Heads to 42.5 m | 140 ft
- Temperatures to 121° C | 250° F
- Pressures to 12 bar | 175 PSIG
- Effective Static Lift to 6m | 20 ft
Goulds V 3298
Vertical ANSI Lined Process
Ideal for moderate to severe corrosives. With or without solids, the 3298 can handle the tough chemical services. As a sealless design, it’s an effective alternative to pumps with mechanical seal problems. Meets strictest EPA regulations.
Performance
- Capacities to 270 m³/h | 320 GPM
- Heads to 129 m | 425 ft
- Temperatures to 121°C | 250°F
- Pressures to 16 bar | 225 PSIG
GOULDS IC I-FRAME® – ISO STANDARD PUMP
- ISO 5199 and ISO 2858 compliant for global industrial use.
- Cyclone seal chamber extends mechanical seal life.
Performance
- Capacities: Up to 450 m³/h
- Head: Up to 160 m | Pressure: 25 bar
- Temperature Range: -40°C to 280°C
Goulds ICM
ISO Metallic Magnetic Drive Process
The ICM pump is the optimum metallic sealless pump for process fluid services in the chemical, paper and general industries where ISO dimensions are preferred. The ICM is specifically designed to pump difficult fluids such as corrosives, high purity and toxic liquids. Its sealless, sturdy design combines with a wide variety of wet end materials. The bearings are chemical and abrasion resistant Silicon Carbide (SSiC). Optional Dryguard™ dry-run protection can be provided.
Performance
- Capacities to 400 m³/h | 1,760 GPM
- Heads to 210 m | 685 ft at 3,500 rpm
- Temperature ranges from -40° C to 180° C | -40° F to 360° F
- Pressures to 16 bar | 232 PSIG
Goulds ICB
Close-coupled ISO Process Pump
The ICB series is an extension to the IC series ISO 5199 frame mounted chemical pump series. These new pumps provide a compact and economical pumping solution ideal for OEM applications and confined spaces in industrial processes. No spacer coupling or alignment is required, reducing capital equipment costs and simplifying installation and maintenance. ICB pumps are fitted with our patented Cyclone seal chamber, proven to provide the optimum sealing environment
for extended mechanical seal life.
Performance
- Capacities to 340 m³/h | 1,490 GPM
- Heads to 160 m | 525 ft
- Temperature ranges from -40° C to 140° C | -40° F to 280° F
- Pressures to 16 bar | 230 PSIG
API 610 PROCESS PUMPS
Built for high-pressure, high-temperature refinery and petrochemical applications.
GOULDS 3610 (BB1) – HORIZONTAL SPLIT CASE API PUMP
- Designed for high flow transfer in refineries & power plants.
- Handles extreme pressures & temperatures.
Performance
- Capacities: Up to 11,355 m³/h
- Head: Up to 215 m | Pressure: 42 bar
- Temperature Range: Up to 205°C
GOULDS 3600 I-FRAME® (BB3) – HEAVY-DUTY MULTISTAGE PUMP
- Ideal for offshore platforms, pipelines, and boiler feeds.
- Handles ultra-high pressures up to 275 bar.
Performance
- Capacities: Up to 1,930 m³/h
- Head: Up to 2,740 m | Pressure: 275 bar
- Temperature Range: Up to 205°C

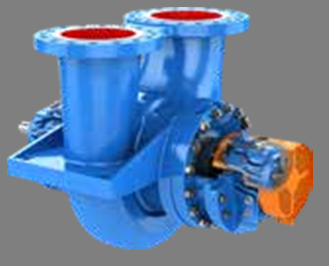

Goulds 3620i* and 3640i®* API 610 (BB2) Single and Two-Stage Between Bearings, radially split process
pumps designed for smooth, reliable operation. Fully meets requirements of API 610.
Performance
- Capacities to 4,540 m³/h | 20,000 GPM
- Heads to 455 m | 1,500 ft
- Temperatures to 455° C | 850° F
- Pressures to 70 bar | 1,000 PSIG
11th edition API compliant, severe service, barrel pumps, in-line diffuser style. For high temperatures, pressures and low specific gravities.
Performance
- Capacity: 910 m³/h | 4,000 GPM
- Head: 2,740 m | 9,000 ft
- Temperature: 425˚C | 800˚F
- Pressure: 275 bar | 4,000 PSIG
Why ITT Goulds Pumps?
- Industry-leading performance across diverse applications.
- Smart monitoring (i-ALERT®2) and digital innovation.
- Extensive material options for aggressive environments.
- ISO, ANSI, and API 610-compliant pumps for maximum reliability.
